A-A-52544
NOTES:
1. Fifth wheel assembly requires use of 2 inch kingpin as shown in A-A-52478.
2. Dimensions are in inches. Unless otherwise specified, tolerances are + .06.
3. This CID is not intended to limit construction to features other than specified
herein, by dimensions, notations, or referenced documents.
4. The use of asterisks (*) indicates that dimensions are covered by international
agreement (see 5.5).

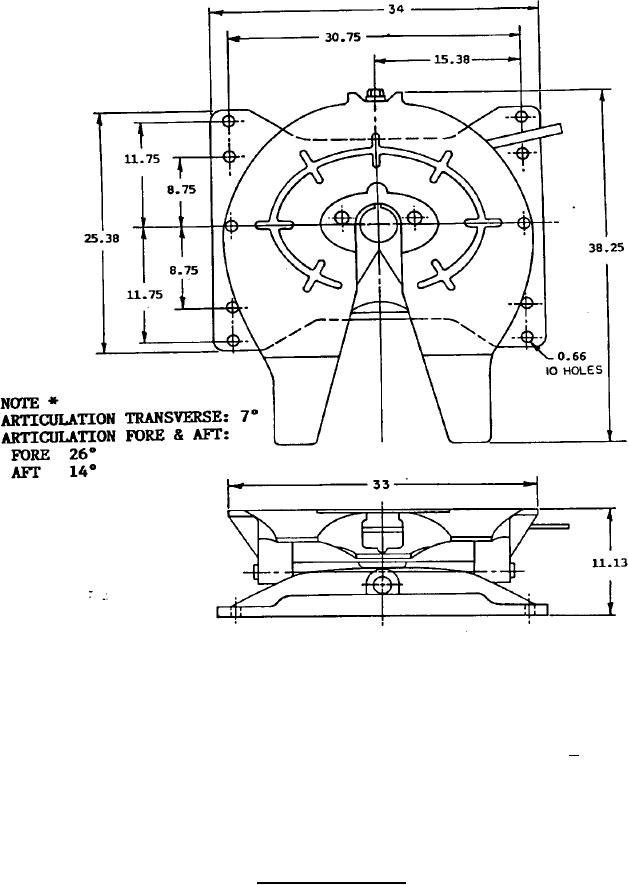

FIGURE 1. Fifth wheel assembly.
2
